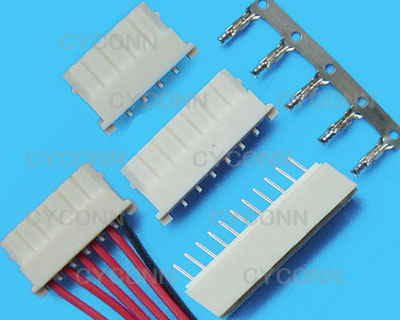

CY2005条形连接器
1.产品描述Product description :
间距Pitch:2.50mm
极数Pole:2-15poles
颜色Color:白色White
2.技术参数Technical parameter :
额定电压Rate Voltage: 250V AC,DC
额定电流Rate Current: 3A (22AWG)
耐压值Withstand Voltage: 800V AC/minute
接触阻抗Contact Resistance: 10mΩ(MAX.)
绝缘阻抗Insulation Resistance: 1000MΩ(MIN.)
工作温度范围Temperature Range: -25℃~+85℃
应用线规Applicable Wire Range: UL1007 22AWG~32AWG
常用线规Common Wire Range: UL1007 24AWG
应用P.C.B厚度Applicable P.C.B Thickness: 1.6mm
应用P.C.B孔径Applicable P.C.B Hole Dia.: ø0.9+0.1/-0mm
3.材料Material :
端子Terminal:磷青铜Phosphor bronze/黄铜Brass
塑壳Housing:Nylon66(UL94V-0)
针座绝缘体Wafer Insulator:Nylon66 UL94V-0
针座导体Wafer Contactr:黄铜Brass
4.包装方式Packaging:
端子Terminal:10000PCS/R
塑壳Housing:1000PCS/BAG
针座Wafer:1000PCS/BAG
配线包装:扎把 Banding
